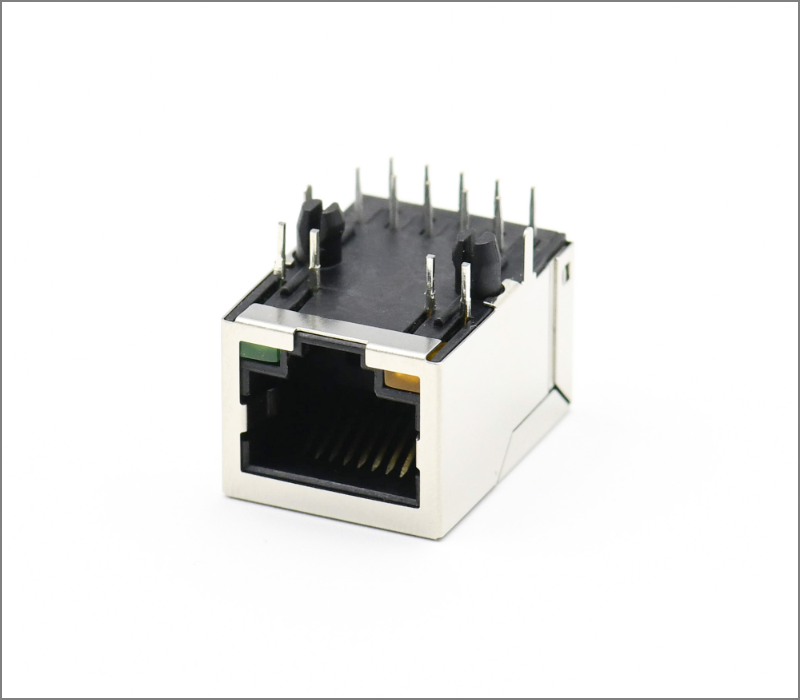

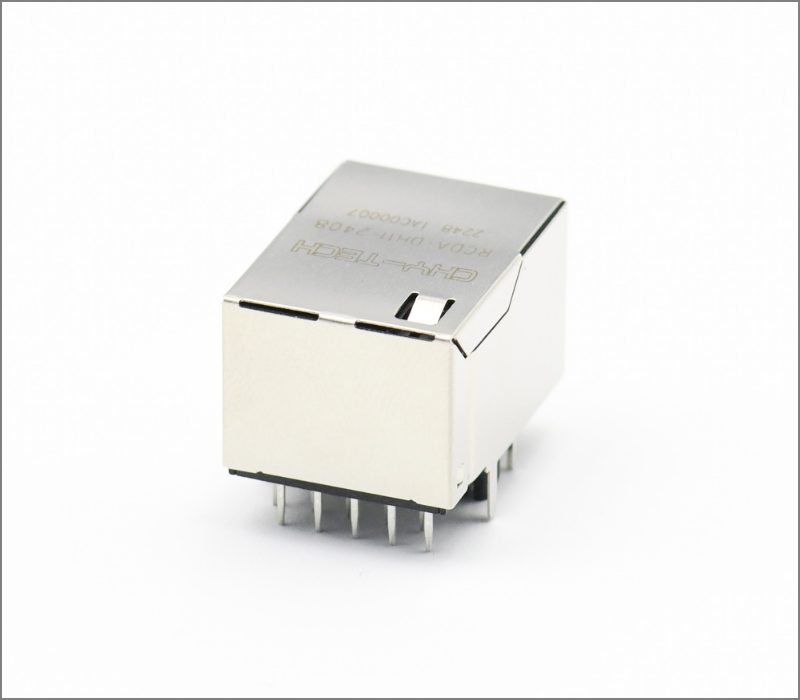

RJ45+Transformer 1G, 1*1,Tab Down, Shield, LED(O/G), P/N:RCDA-DH11-2408

Product model: RCDA-DH11-2408

● Port Matrix Configuration:1*1

● Contact Rating:1A/48VDC~

● Shielding:Yes

● Status Indicator Type:LED

● LED Color (Bottom Left) :Orange

● LED Color (Bottom Right) :Green

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Black or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

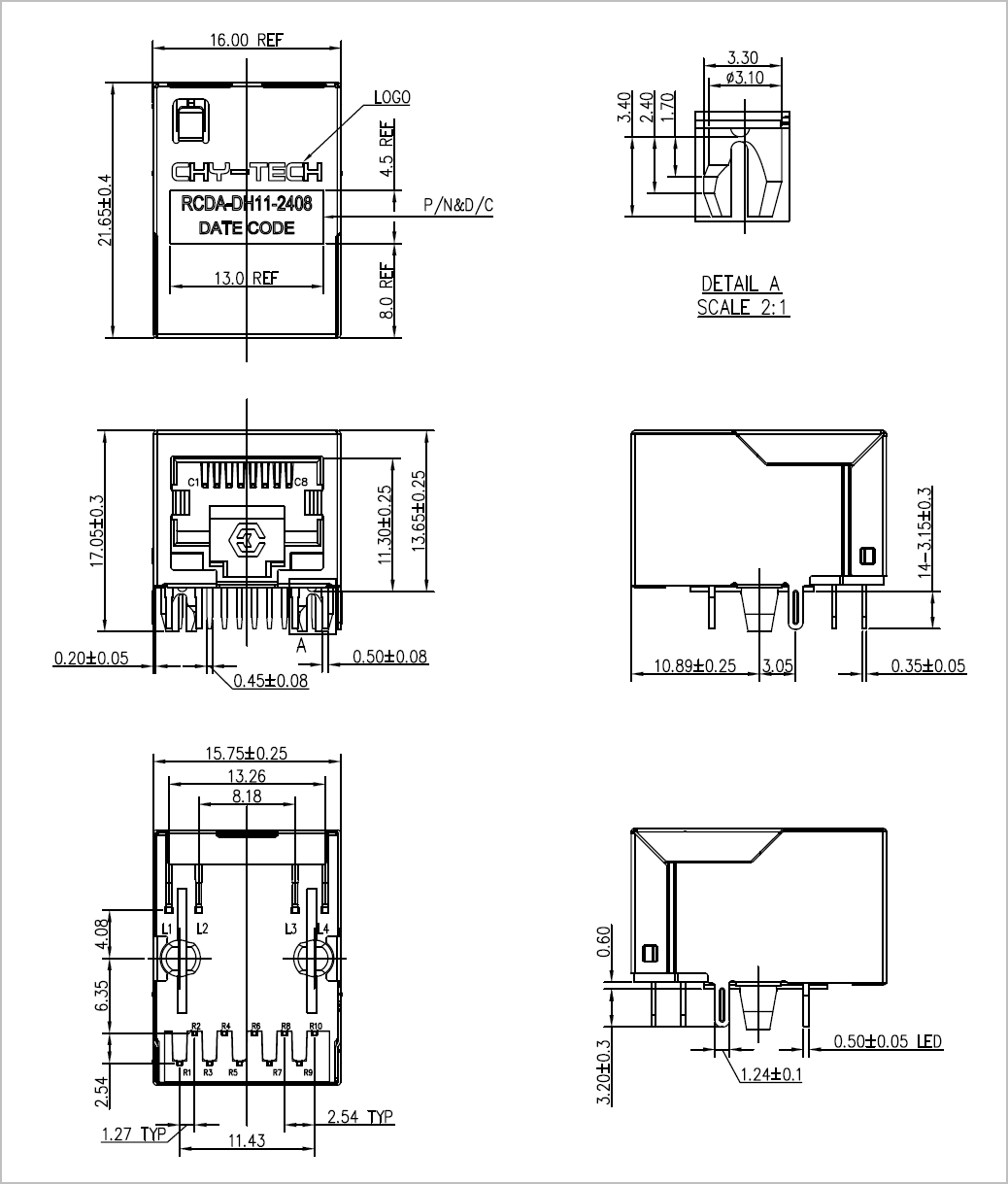

RCDA-DH11-2408 尺寸图.png

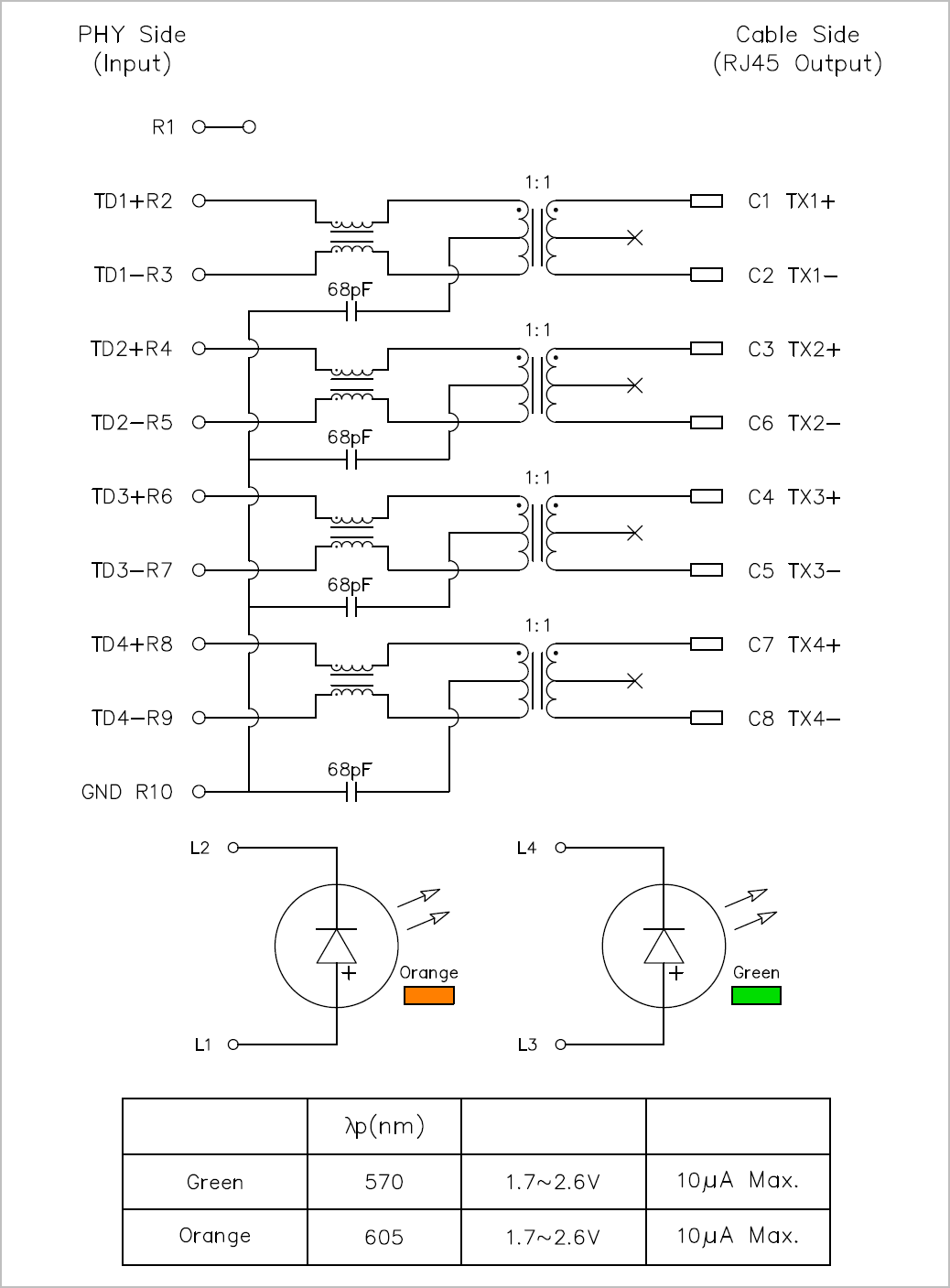

ELECTRICAL SCHEMATIC:

RCDA-SH11-2408 电路图.png
