● Port Matrix Configuration：1*1
● Contact Rating：1.5A/150VAC~
● Shielding：Yes
● LED Color (Bottom Left) ：Green
● LED Color (Bottom Right) ：Yellow
● Termination Method to PCB： Through Hole - Solder
● Transmission rate：1G BASE-T
● Housing Material：High Temperature Thermoplastic UL94V0
● Housing Color：Black or by Request
● EU RoHS Directive 2011/65/EU：RoHS and Halogen-Free Component

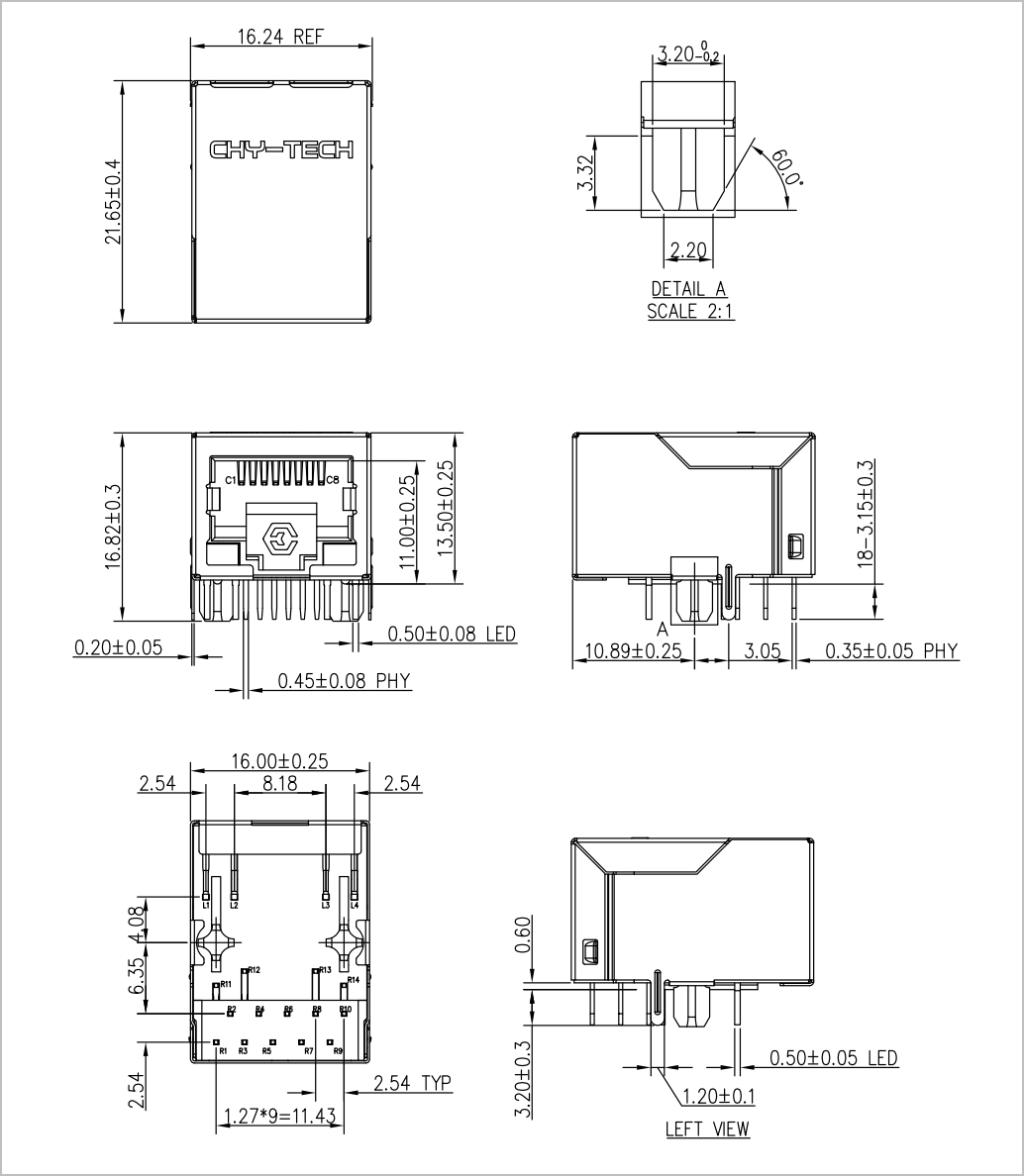

MECHANICAL DIMENSION：

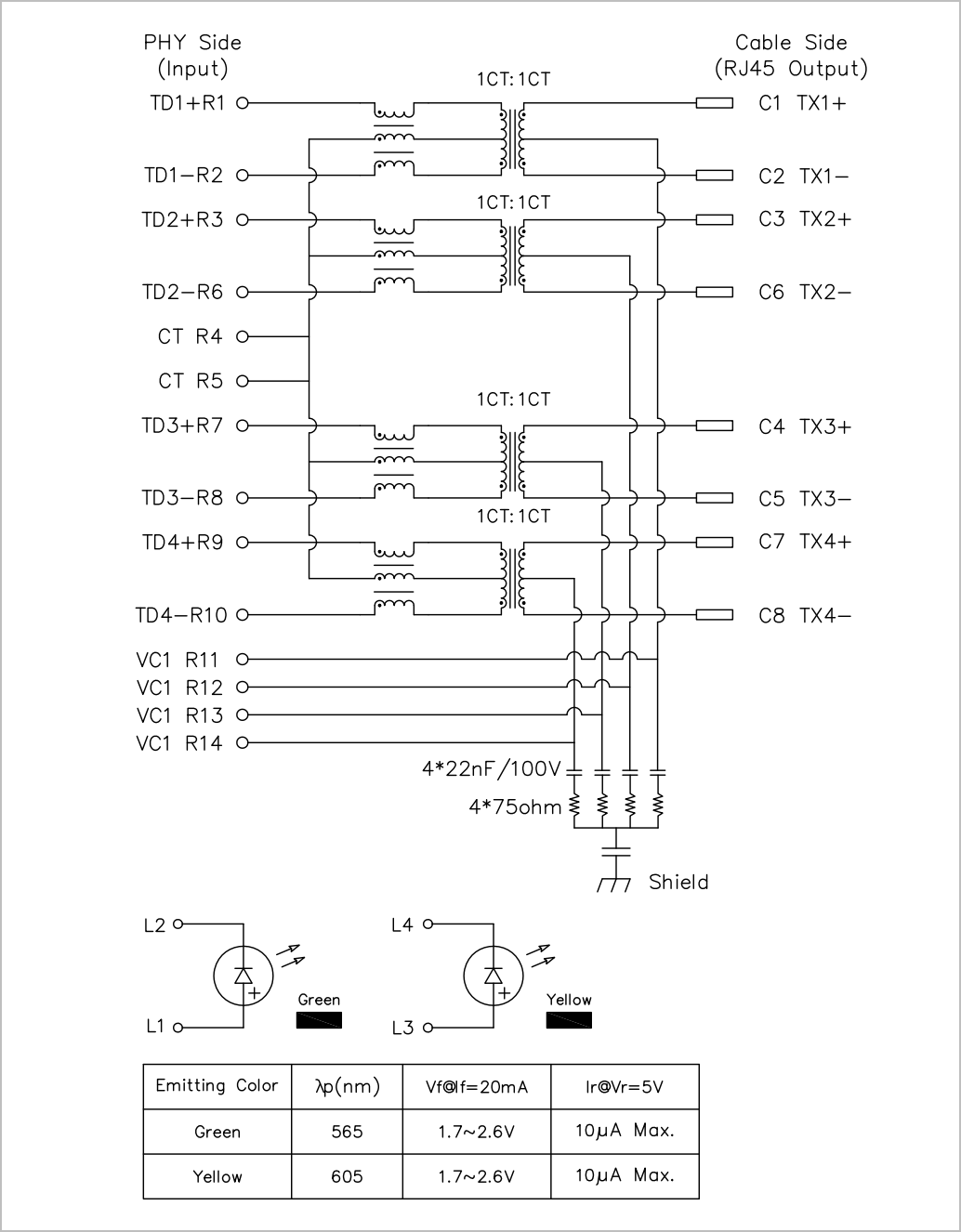

ELECTRICAL SCHEMATIC：
