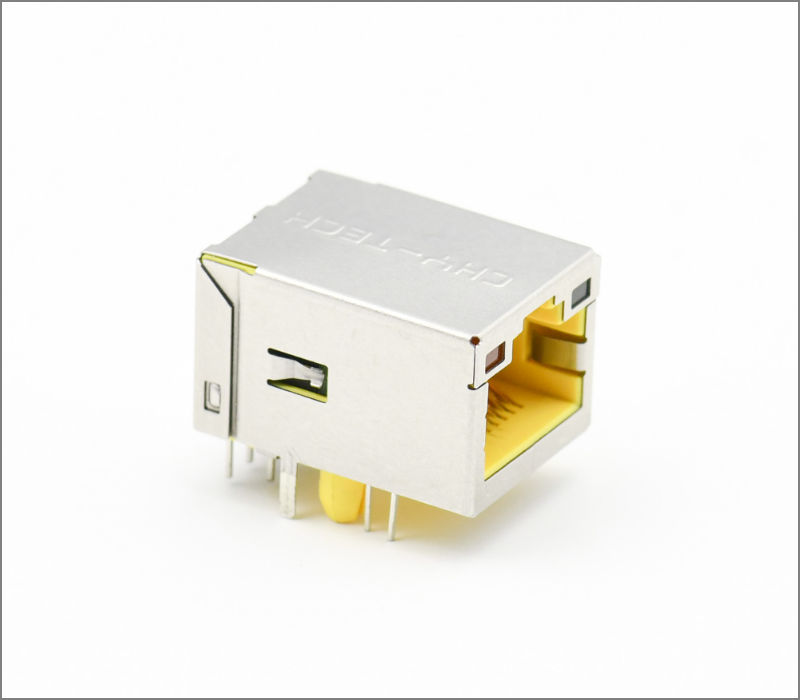

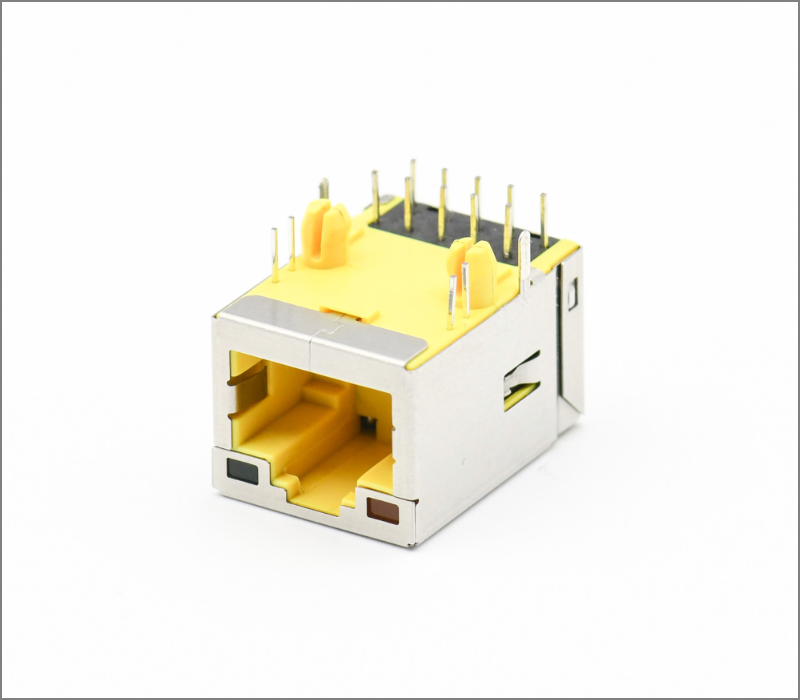

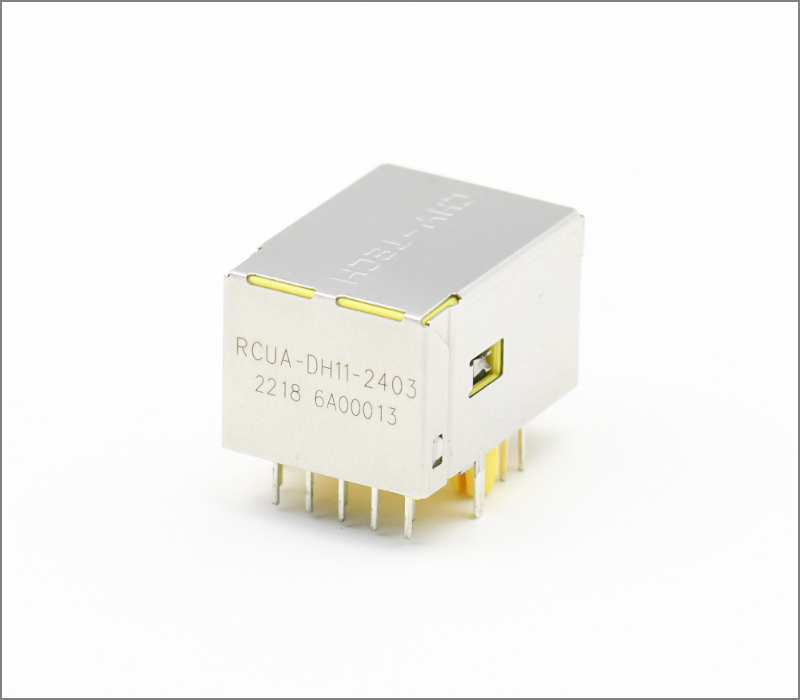

RJ45+Transformer 1G, 1*1, Tab Up, Shield, LED(O/G), P/N:RCUA-DH11-2403

Product model: RCUA-DH11-2403

● Port Matrix Configuration1*1

● Contact Rating:1.5A/150V~

● Shielding:Yes

● LED Color (Top Left) :Orange

● LED Color (Top Right) :Green

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Yellow(114C) or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
