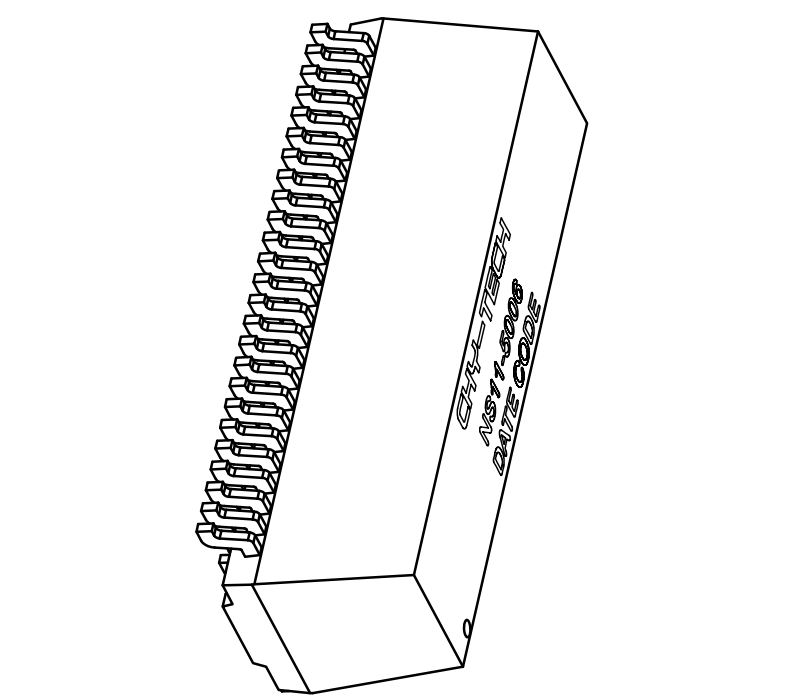

10/100/1000 BASE-T Dual Port SMD Transformer Module, P/N:NS11-5006

Product model: NS11-5006

● OCL: 350 uH Min, @100KHz,0.1V, with 8mA DC Bias.

● Turns Ratio (±3%): 1CT:1CT

● Instertion Loss (0.5-100MHz): -1.1 dB Max

● Return Loss: -18 dB Min (0.5-40MHz);  -12+20*log(f/80) dB Min (40.1-100MHz)

● Cross Talk: -35 dB Min (0.5-40MHz);  -33+20*log(f/50) dB Min (40.1-100MHz)

● CMRR (0.5-100MHz): -30 dB Min

● HI-POT : 1500 Vrms

● Designed To Meet IEEE  802.3ab & ANSI X 3.263  Standards.


PRODUCT SPECIFICATIONS

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
