RJ45+Transformer 1G, 1*1, Tab Down, Shield, LED(G Y/G Y), P/N:RCDA-CH11-8801

Product model: RCDA-CH11-8801

● Port Matrix Configuration1*1

● Contact Rating:1A/48VDC~

● Shielding:Yes

● LED Color (Bottom Left) :Green/Yellow

● LED Color (Bottom Right) :Green/Yellow

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Black or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component



PRODUCT SPECIFICATIONS

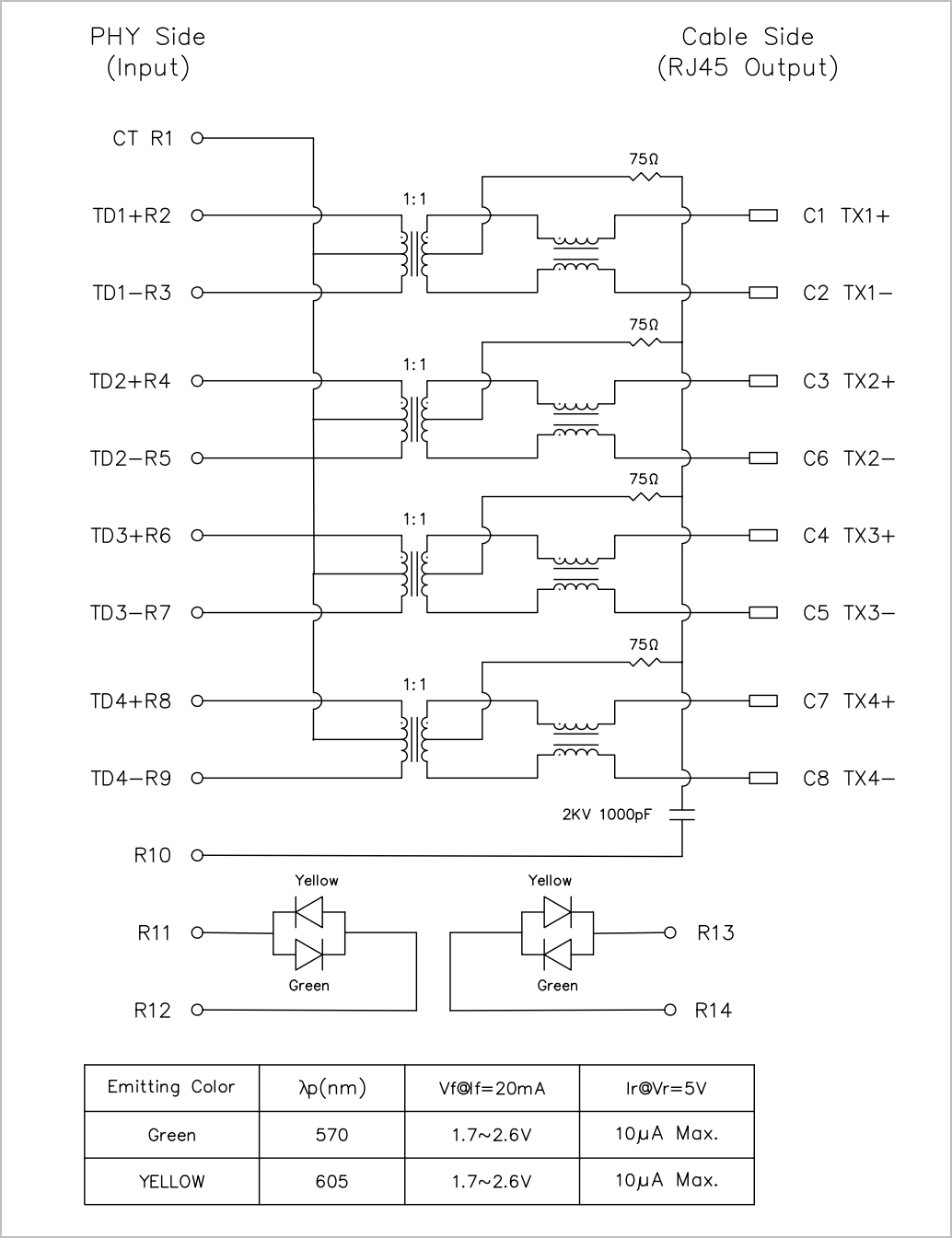

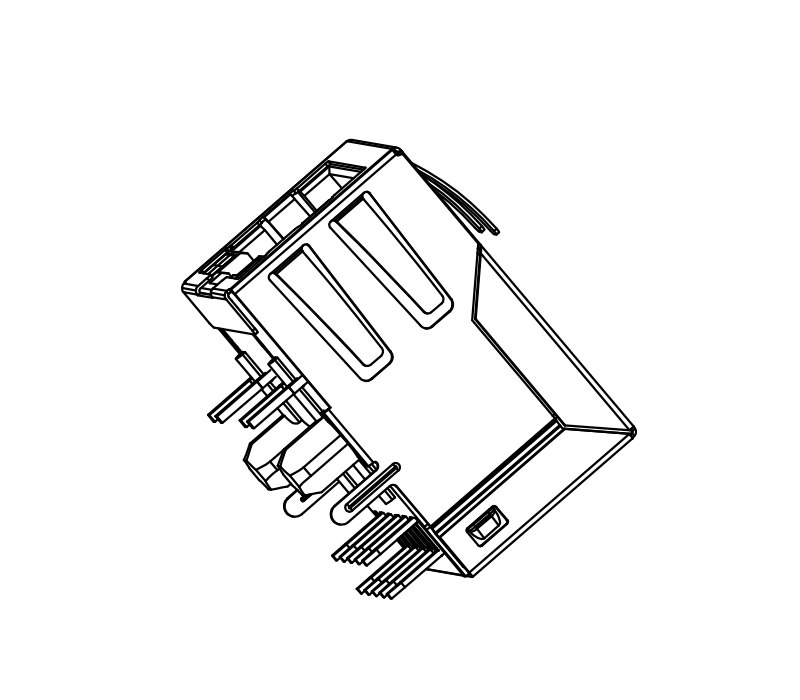

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
