RJ45 ICM 1G+USB3.0*2, Shield, LED(GO/Y), Single Port, P/N:RUUA-DH11-2101

Product model: RUUA-DH11-2101

● Port Matrix Configuration1*1

● Contact Rating:1.5A/150V~

● Shielding:Yes

● LED Color (Bottom Left) :Green/Orange

● LED Color (Bottom Right) :Yellow

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Black or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component



PRODUCT SPECIFICATIONS

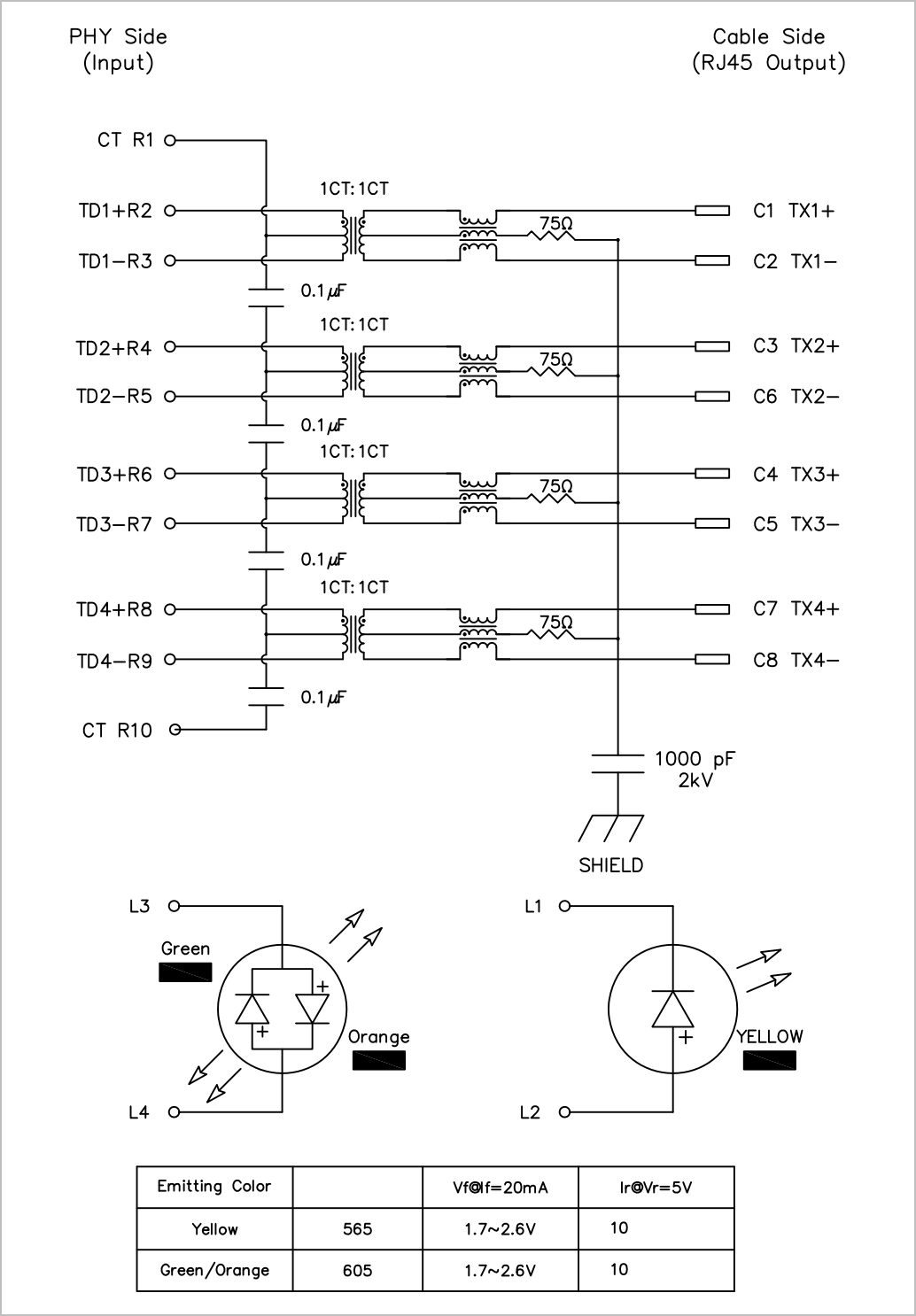

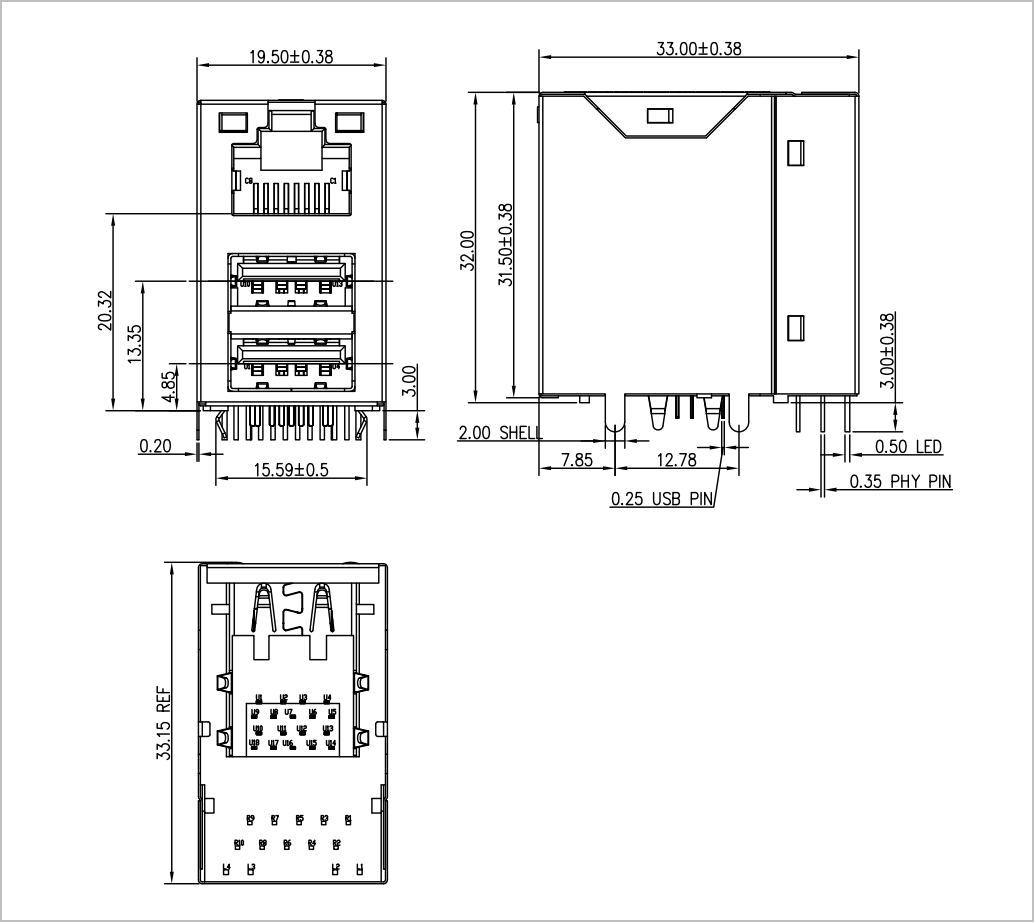

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC

RECOMMEND
