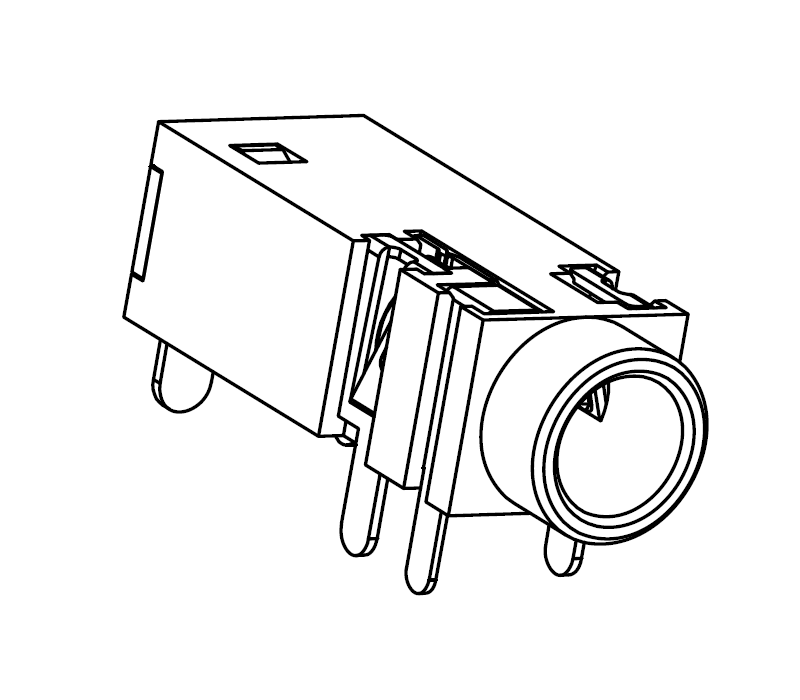

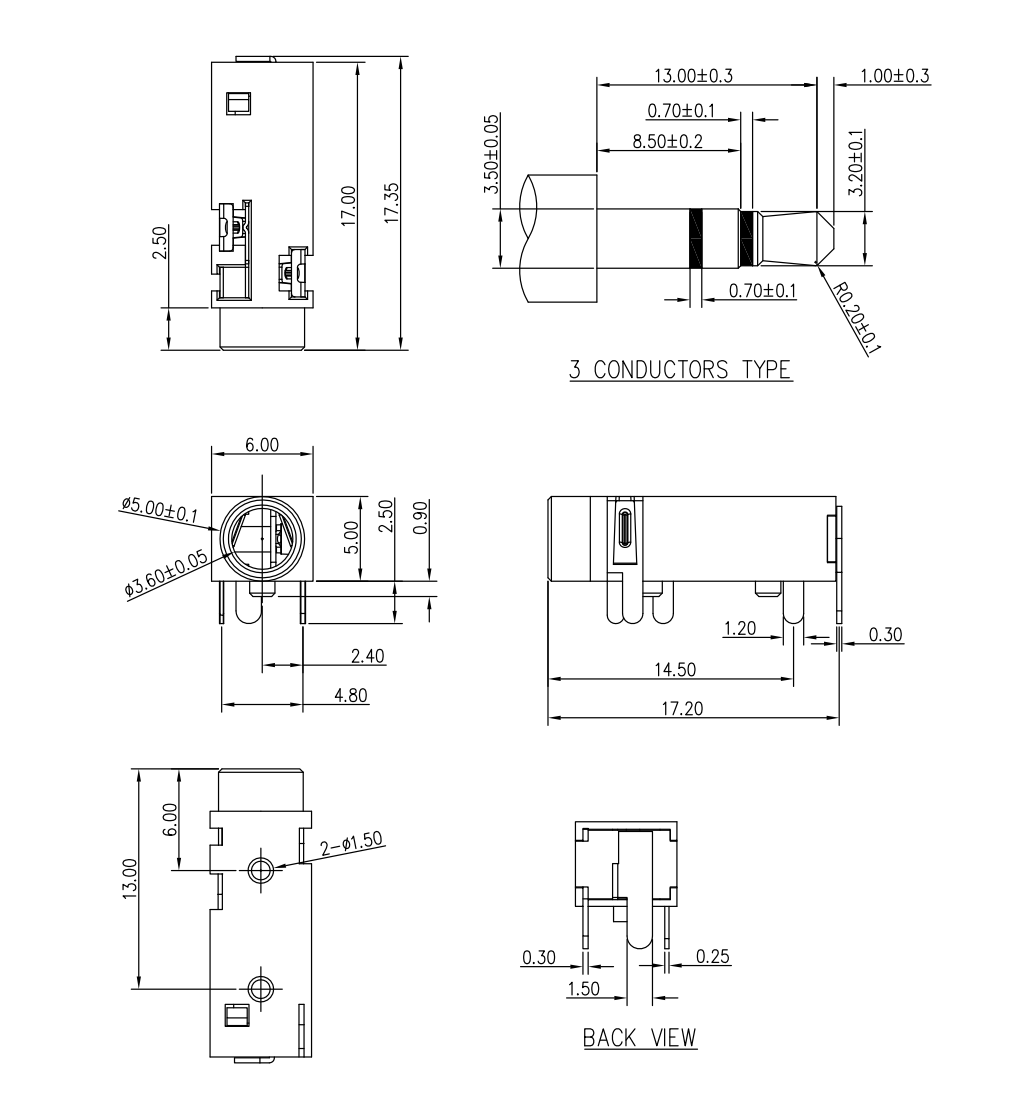

Audio Jack ,3 Pole φ3.5 Mate Plug, P/N:AUC-326DA

Product model: AUC-326DA

● Contact Resistance:1A/12VDC

● Contact Resistance:30mΩ(MAX)500VDC

● Winthstand Voltage:500VAC/0.5mA-1 MINUTE

● Insertion and Extraction Force:Insertion Force:  0.3~3Kgf

                                                      Withdrawal Force:  0.3~3Kgf

● Electrical Life:5000 Cycles min.

● Mate Plug:3 Pole,φ3.50mm

● Housing Color:Black or by request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component
