Location: Home > Products > RJ11 / RJ45 Connector > RJ45 Magnetic Jacks > 1xN Port ICMs

RJ45+Transformer 1G, 1*1, Tab Down, Shield, P/N:RCDA-CP11-0002

Product model: RCDA-CP11-0002

● Port Matrix Configuration1*1

● Contact Rating:1A/48VDC~

● Shielding:Yes

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Black or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

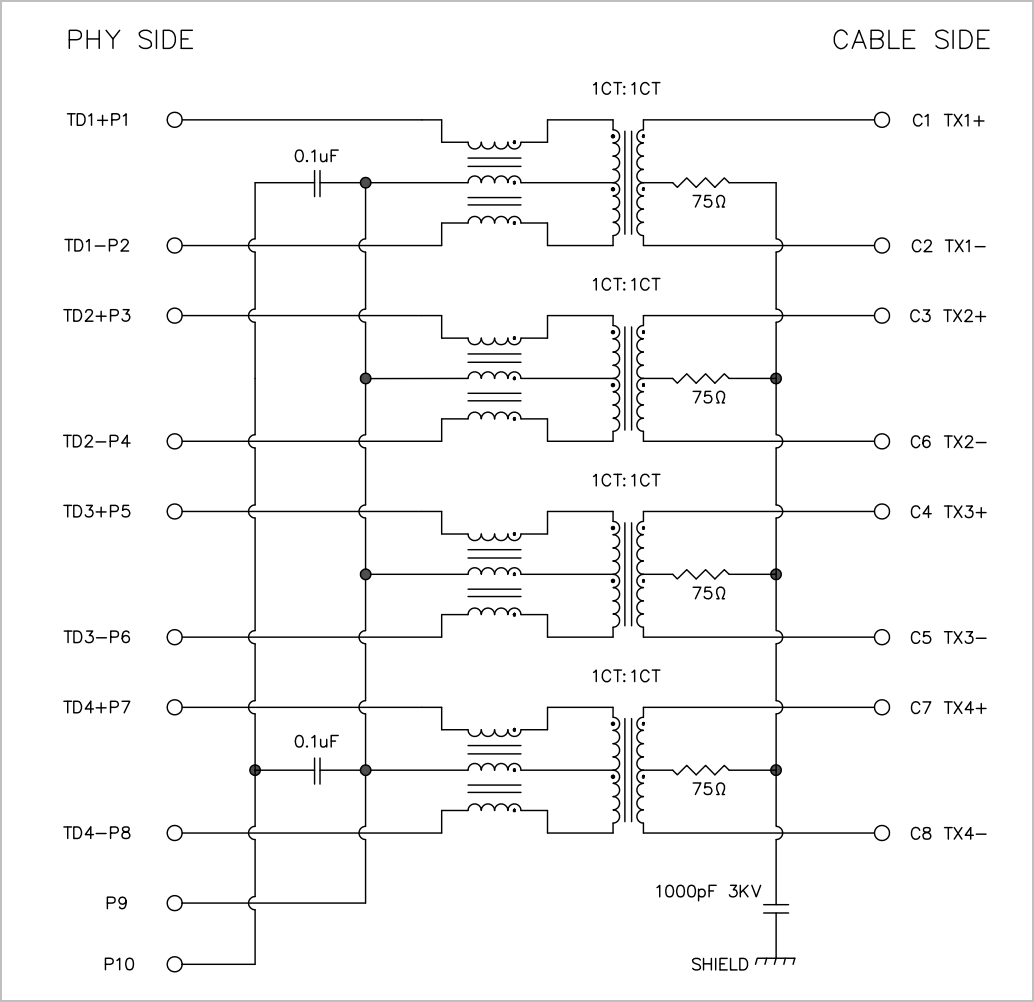

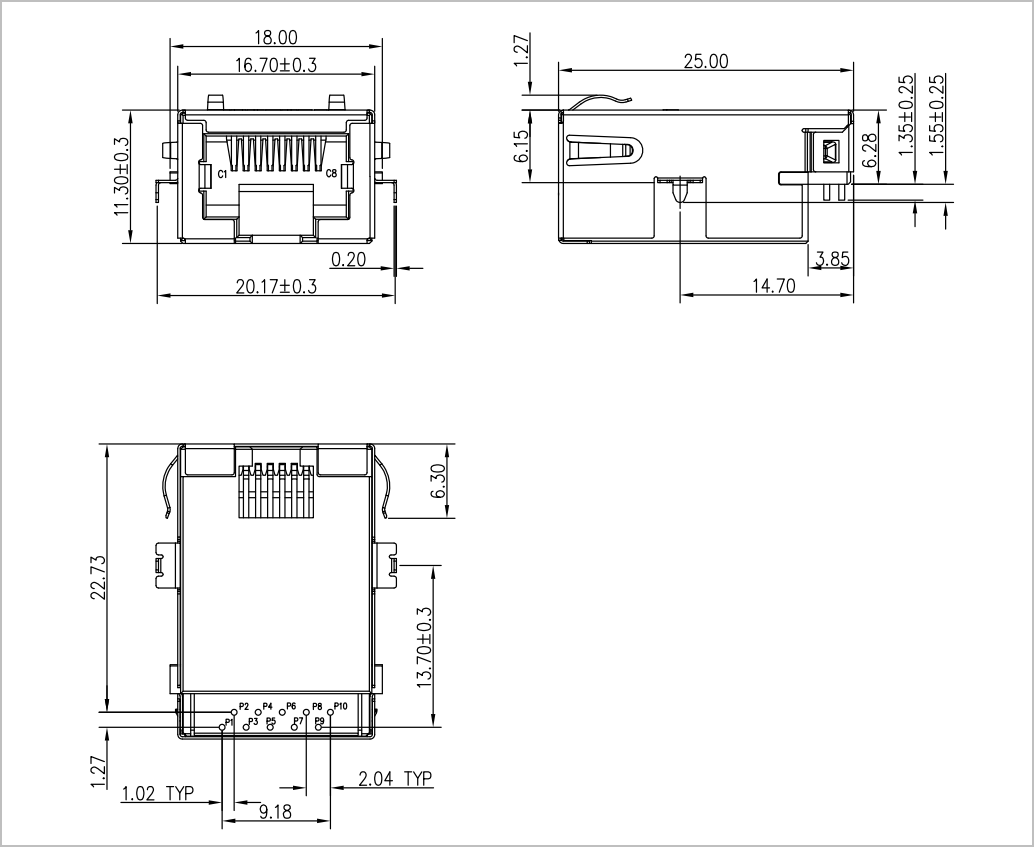

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC

RECOMMEND
