RJ45+Transformer 10G, 1*1, Tab Up, Shield, LED(G), P/N:RCUA-DV14-4002

Product model: RCUA-DV14-4002

● Port Matrix Configuration1*1

● Contact Rating:1.5A/150VAC~

● Shielding:Yes

● LED Color (Top Left) :Green

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:10G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Blue (Pantone 299C) or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

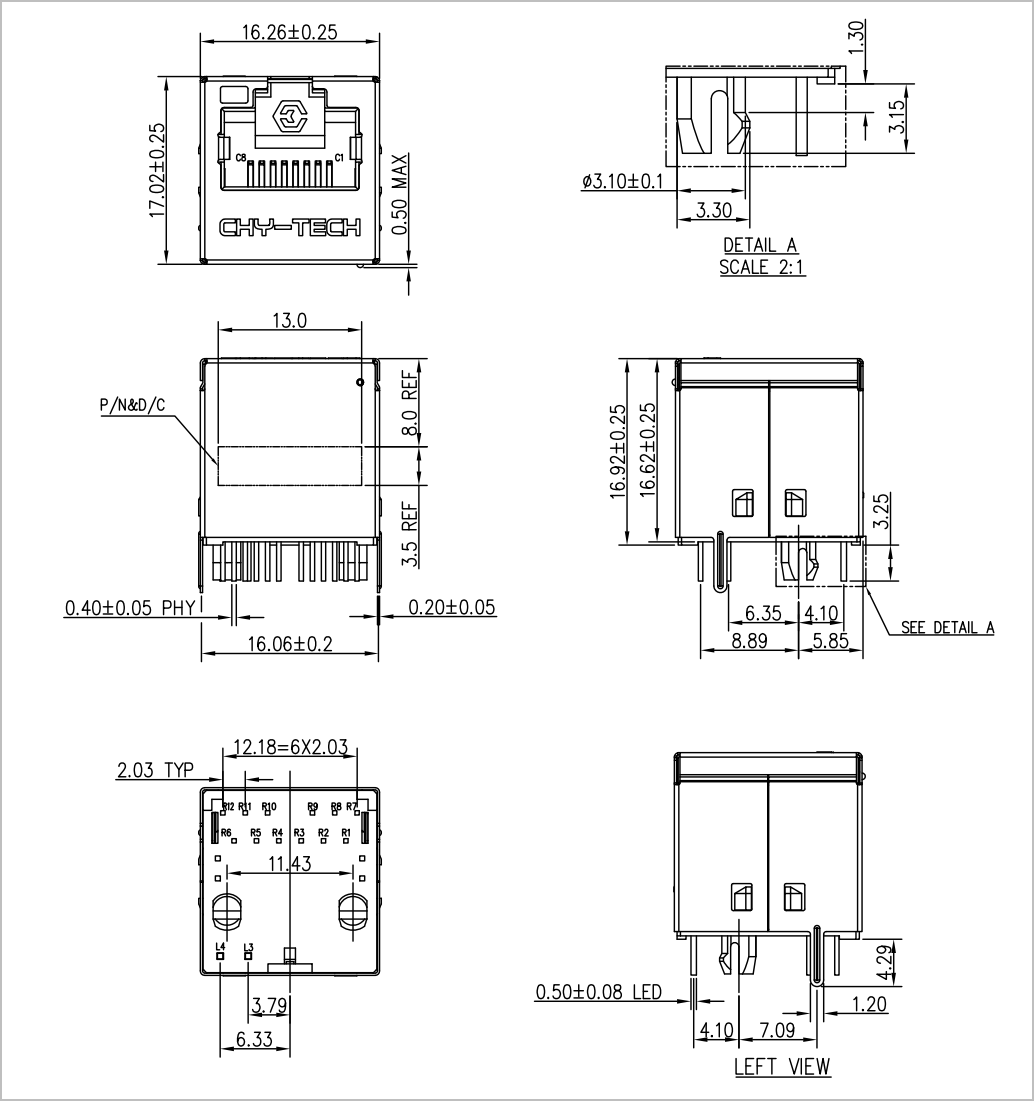

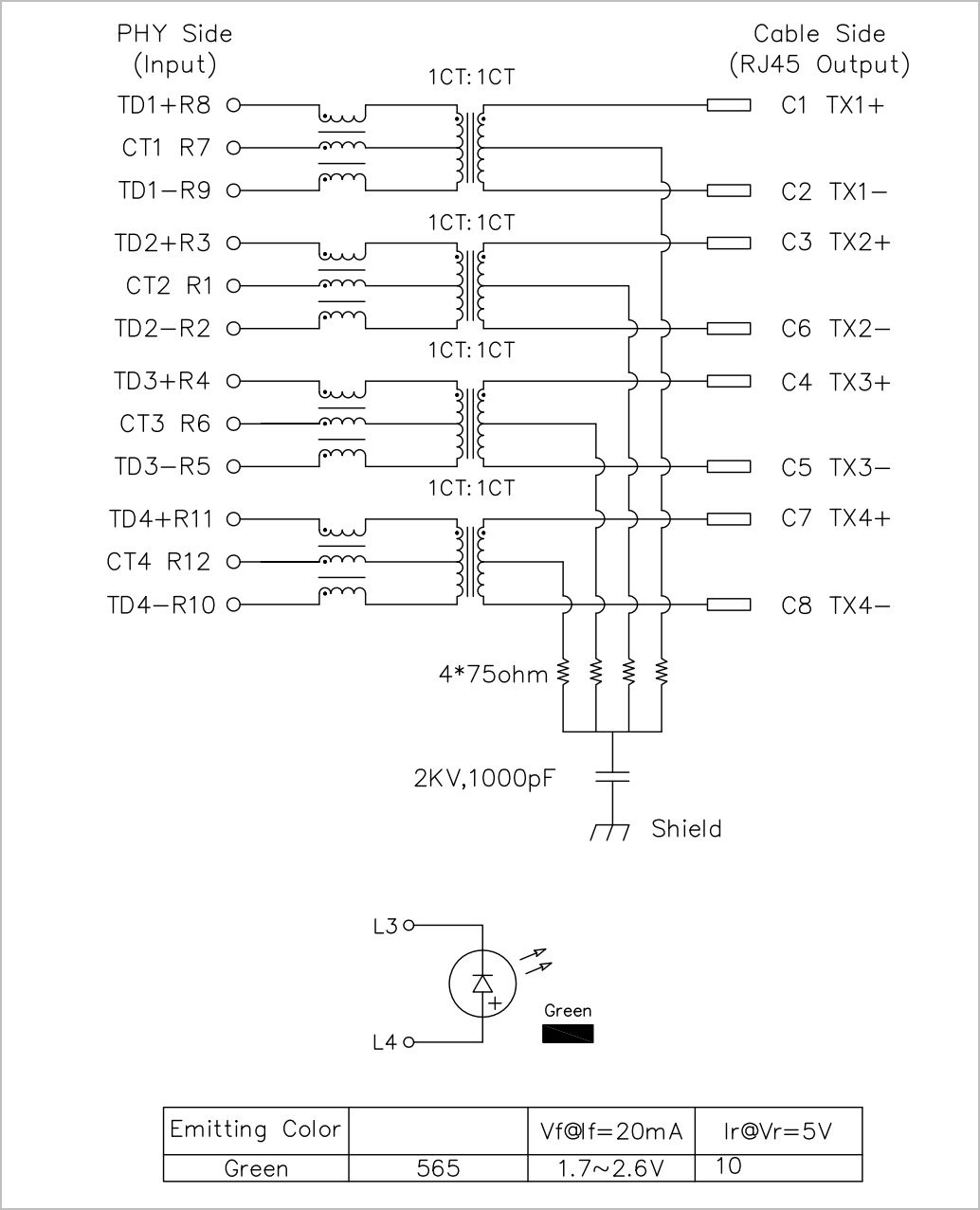

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
