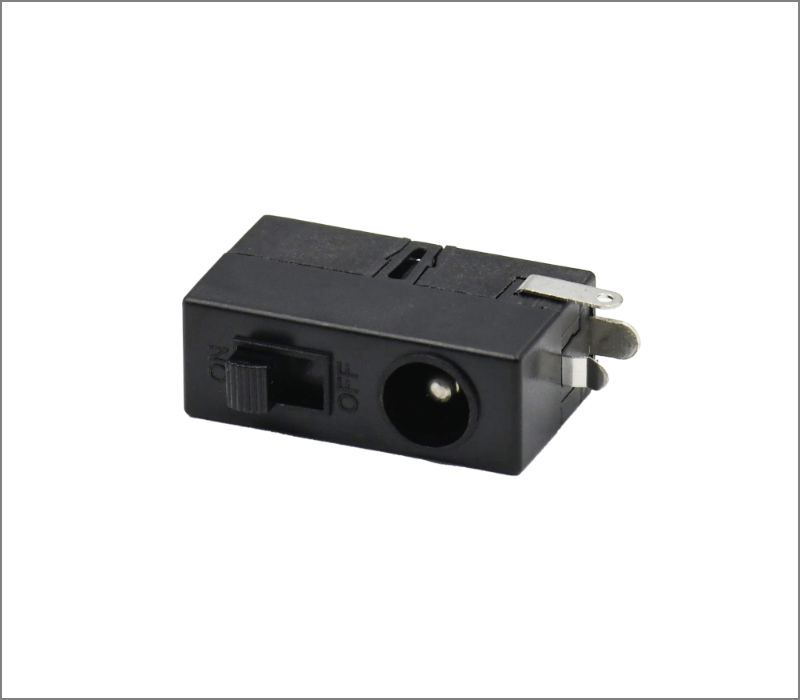

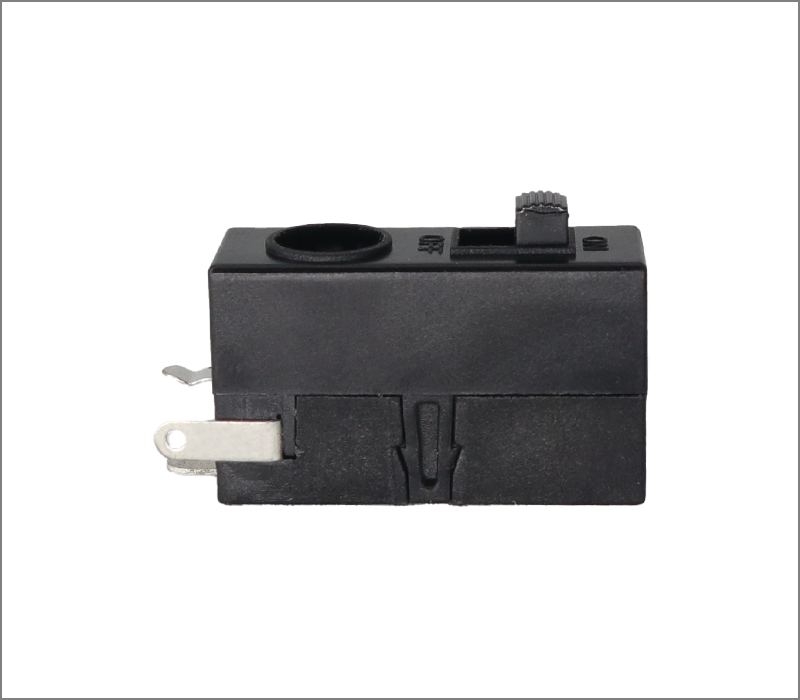

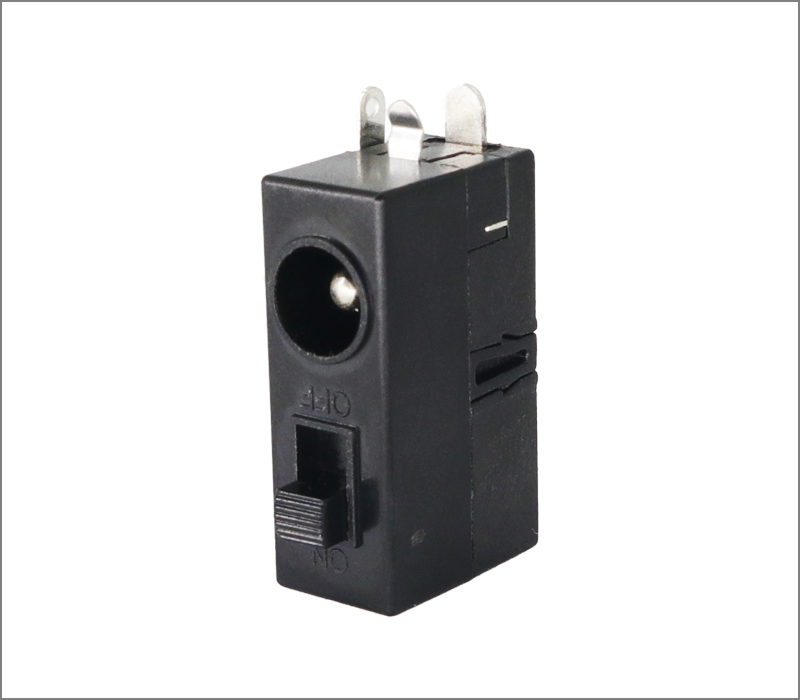

DC Power Connector With Rocker Switch,2.5*6.3mm, P/N:SD-05-01DA

Product model: SD-05-01DA

● Contact Rating:7A/12VDC

● Contact Resistance:30mΩ(MAX)500VDC

● Dielectric Withstand Voltage:500VAC/0.5mA-1 Minute

● Electrical Life:5000 Cycles min.

● Housing Color:Black or by request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component

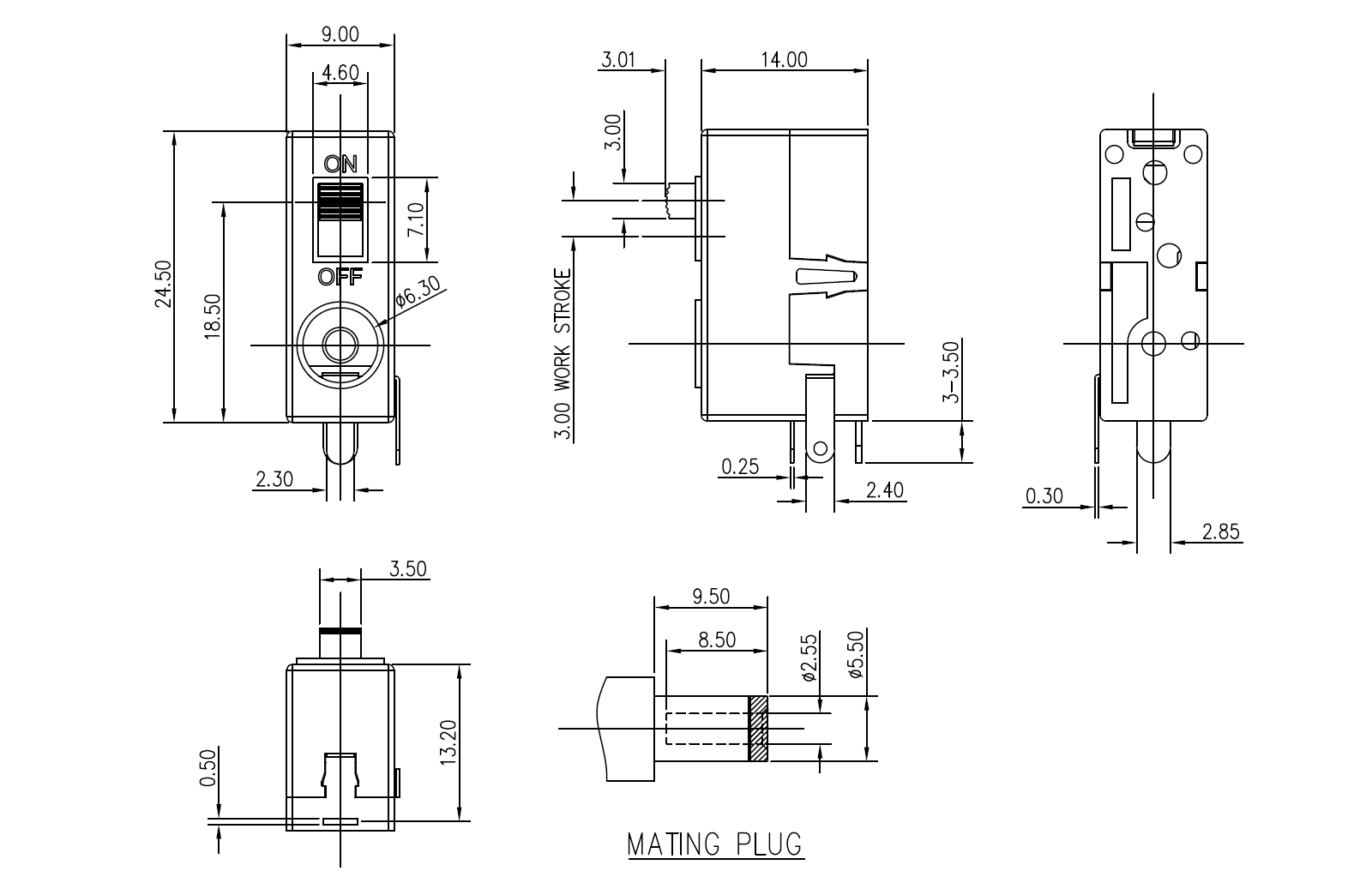

PRODUCT SPECIFICATIONS
