● Port Matrix Configuration：1*1
● Contact Rating：1.5A/150VAC~
● Shielding：Yes
● LED Color (Top Left) ：Green
● Termination Method to PCB： Through Hole - Solder
● Transmission rate：10G BASE-T
● Housing Material：High Temperature Thermoplastic UL94V0
● Housing Color：Red(Pantone 032C) or by Request
● EU RoHS Directive 2011/65/EU：RoHS and Halogen-Free Component

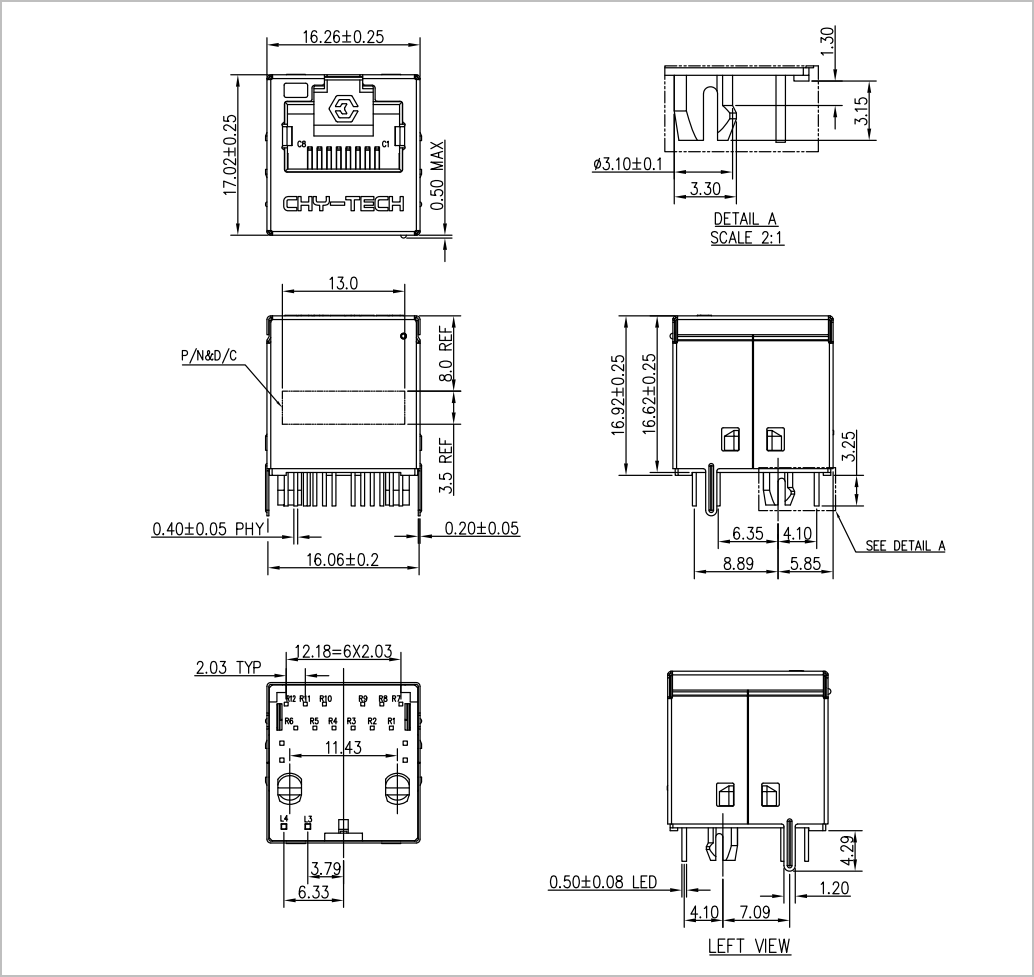

MECHANICAL DIMENSION：

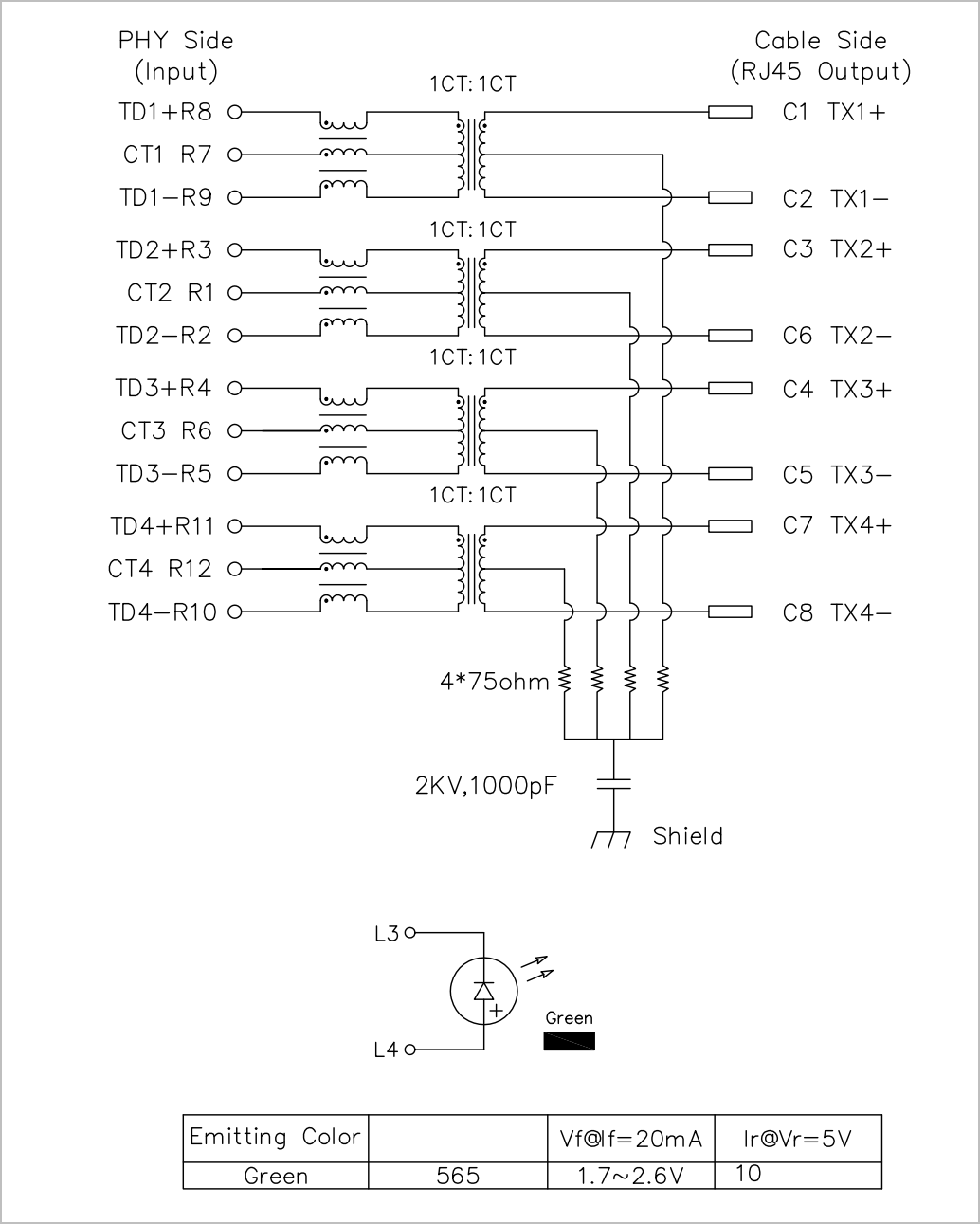

ELECTRICAL SCHEMATIC：
