RJ45+Transformer 1G, 1*1, Tab Up, Shield, LED(Y/G O), P/N:RCUA-CH11-1A01

Product model: RCUA-CH11-1A01

● Port Matrix Configuration1*1

● Contact Rating:1A/48V~

● Shielding:Yes

● LED Color (Bottom Left) :Green/Orange

● LED Color (Bottom Right) :Yellow

● Termination Method to PCB: Through Hole - Solder

● Transmission rate:1G BASE-T

● Housing Material:High Temperature Thermoplastic UL94V0

● Housing Color:Black or by Request

● EU RoHS Directive 2011/65/EU:RoHS and Halogen-Free Component


PRODUCT SPECIFICATIONS

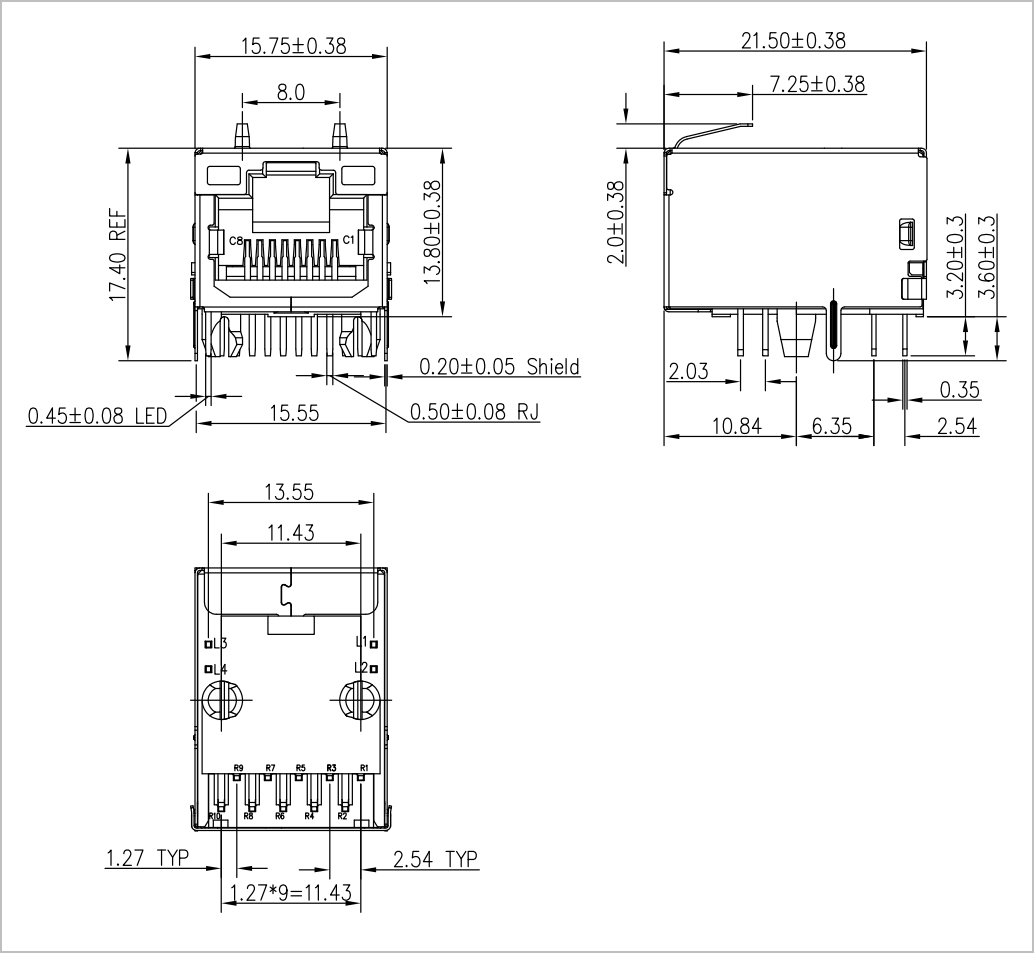

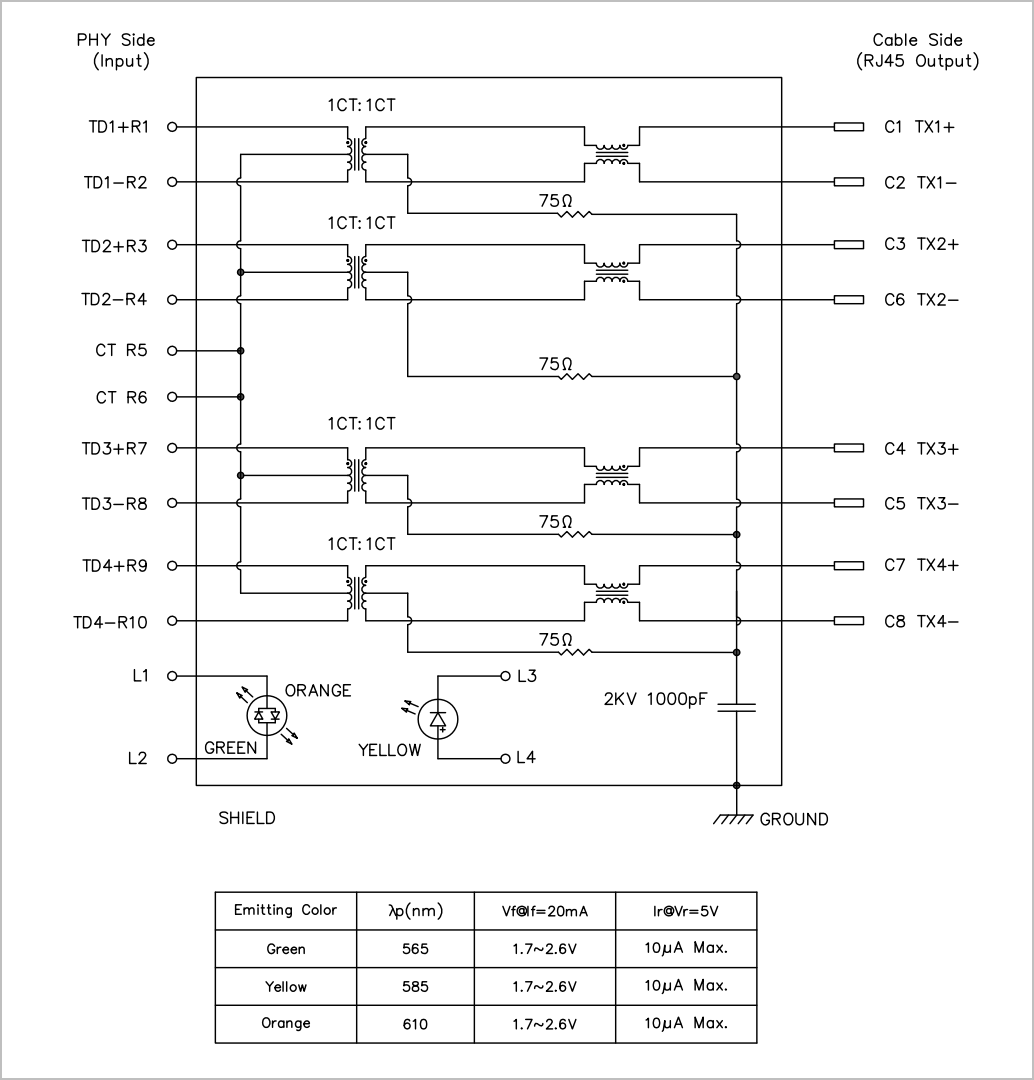

MECHANICAL DIMENSIONELECTRICAL SCHEMATIC
